Description

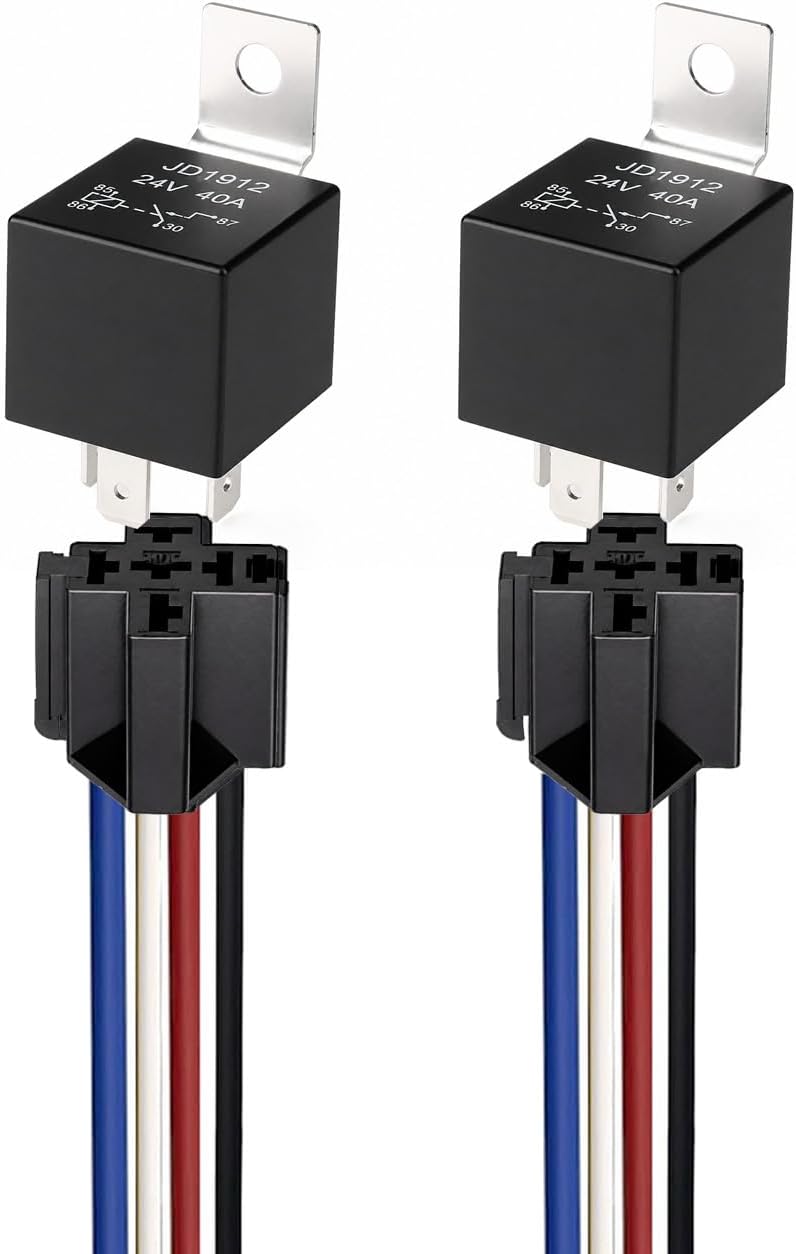

Relay Technical Specification: Relay load: 40A/12VDC Coil power:1.8W Operate Time: 15ms Release Time: 10ms Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range:35%-80% Atmospheric Pressure:86-106KPa Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Operation Goal: Create value for our customers is our responsibility, quality products and sincere service is our eternal pursuit. After Sale Service: Customer satisfaction is our greatest pursuit, If you found our products don’t work or not so good quality as you think, Please contact us without hesitation.
